T1 RJ45 to Single-Mode 1310nm Fiber Media Converter
$395

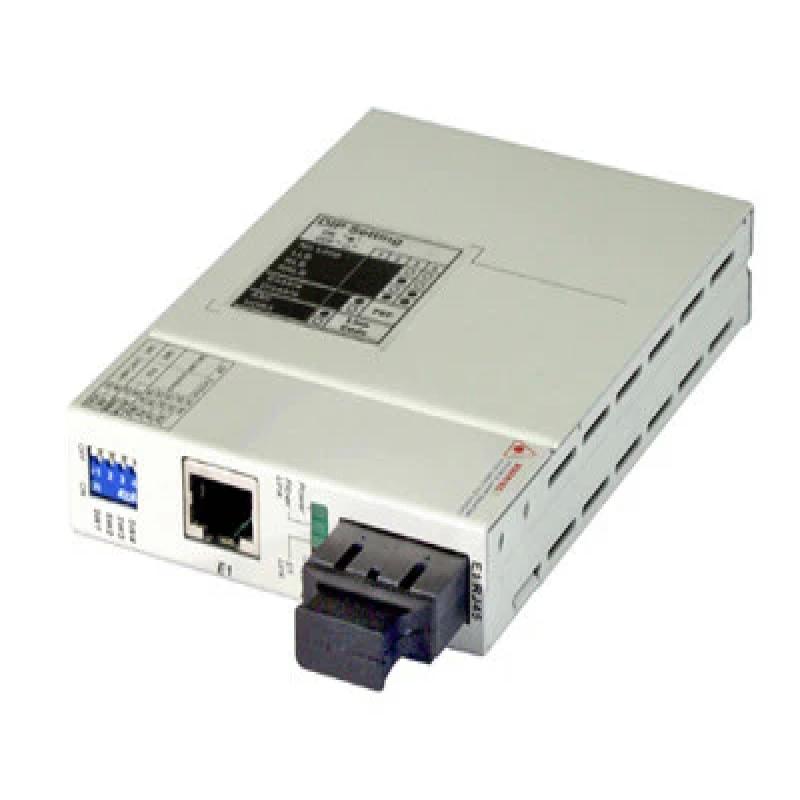

The FIB1-T1R-SC15F is a fiber media converter for G.703 T1
transmission/transport and features an RJ-48c connector for connection
to 100 Ohm twisted pair wiring. FIB1-T1R-SC15F operates on single-mode
fiber up to 15Km (9.3mi) distance. Versions of 30Km and 50Km single-mode
1310nm converters or versions with ST or FC connectors are available on
request.
The fiber media converter is equipped with dual SC type optical connector. The media converter is also sometimes called T1 fiber modem. When the FIB1-T1R card is placed in the FRM301 rack with SNMP management, the card status, type, version, fiber link status, E1 or T1 link status and alarms can all be displayed. Configuration is also available to enable or disable the port, reset the port, do far end fault setting, and initiate local or far end loop-back tests.
The fiber media converter is equipped with dual SC type optical connector. The media converter is also sometimes called T1 fiber modem. When the FIB1-T1R card is placed in the FRM301 rack with SNMP management, the card status, type, version, fiber link status, E1 or T1 link status and alarms can all be displayed. Configuration is also available to enable or disable the port, reset the port, do far end fault setting, and initiate local or far end loop-back tests.
The uniqueness of FIB1-T1R is given by the ability to convert from
standalone media converter to card for FRM301 chassis, in matter of
minutes. In an always changing and growing networking environment, such a
versatile feature allows network operators to switch to higher density
and aggregation hubs without the need to purchase new fiber optic
converters. This simple, but so reliable idea, made the FIB1-T1 media
converter the perfect choice for media converters by data carriers and
service providers.
Converts T1/E1 over RJ45 to 1310nm fiber for up to 15 km transmission.
